Which Consumer Electronics MIM Parts Are Worth Evaluating?
Consumer electronics MIM parts are small, complex metal components used in smartphones, tablets, laptops, earbuds, camera modules, connectors, hinges, brackets, and compact mechanical assemblies. Metal injection molding is worth evaluating when a part needs metal strength, fine features, compact geometry, repeatable production, and fewer machining or assembly steps. The real decision is whether geometry, material, visible surface, tolerance strategy, annual volume, and assembly function justify MIM tooling, debinding, sintering shrinkage control, secondary operations, and inspection. This page classifies consumer electronics parts by device type, part family, and engineering requirement. If your project is phone-specific or laptop-specific, continue to the dedicated L3 page. If the main issue is hinge movement, bracket support, tight tolerance, wear, or corrosion exposure, the better path may be a cross-industry MIM parts page or a drawing-based DFM review.
- Good MIM fitSmall metal parts with complex 3D geometry, fine features, and repeat production demand.
- Needs reviewVisible surfaces, tight mating dimensions, thin walls, coating routes, and moving mechanisms.
- Route to L3Phone-specific and laptop-specific topics should continue to dedicated device pages.
- Send for DFMUnclear geometry, finish, tolerance, or volume assumptions should be reviewed before tooling.
This L2 page is a consumer electronics MIM parts entrance page. It helps users classify parts, understand suitability, and choose the right deeper page or review path.
Main decisionUse MIM when small metal geometry, production volume, cosmetic requirements, and assembly function justify tooling, shrinkage compensation, and sintering control.
Parent categoryFor the broader parts library, visit MIM Parts.
What Types of Consumer Electronics Parts Are Good Candidates for MIM?
The strongest consumer electronics MIM candidates usually share five conditions: small part size, complex three-dimensional geometry, metal performance requirement, repeat production volume, and assembly-critical features. A part that is large, flat, simple, or required only in very small quantities may be better suited for CNC machining, stamping, die casting, or plastic injection molding.
| Part Group | Typical Parts | Why MIM May Fit | Main Review Risk |
|---|---|---|---|
| Phone and tablet parts | SIM trays, camera rings, buttons, small internal brackets | Small size, cosmetic surfaces, repeat production | Visible surface zones, assembly tolerance, finishing route |
| Laptop parts | Hinge-related parts, retainers, support brackets, locking parts | Strength, compact mechanism, repeated movement | Wear, torque, dimensional repeatability |
| Audio device parts | Earbud metal frames, charging case inserts, miniature supports | Small geometry, appearance, assembly fit | Thin walls, polishing allowance, coating route |
| Camera module parts | Camera rings, support frames, miniature housings | Precision, appearance, compact structure | Roundness, flatness, coating compatibility |
| Connector and module hardware | Retainers, supports, miniature brackets | Dense features, repeat assembly | Burr control, plating, fit with mating parts |
| Miniature mechanisms | Latches, pivots, locking parts | Complex geometry and movement | Friction, wear, mating dimensions |
A common mistake is to treat every small metal component in an electronic product as a MIM candidate. MIM is usually more valuable when the part has three-dimensional complexity, internal or external features, holes, slots, ribs, steps, undercuts, or integrated functions that would require several machining or assembly operations by other methods.
For connector-related parts, the route must be defined carefully. MIM is generally more relevant for structural supports, retainers, housings, frames, and miniature brackets than for flat terminals, spring contacts, or thin stamped conductive parts. If electrical conductivity, elastic deflection, or spring behavior is the main function, the design should be reviewed against stamping, forming, material temper, and plating requirements before assigning the part to MIM.

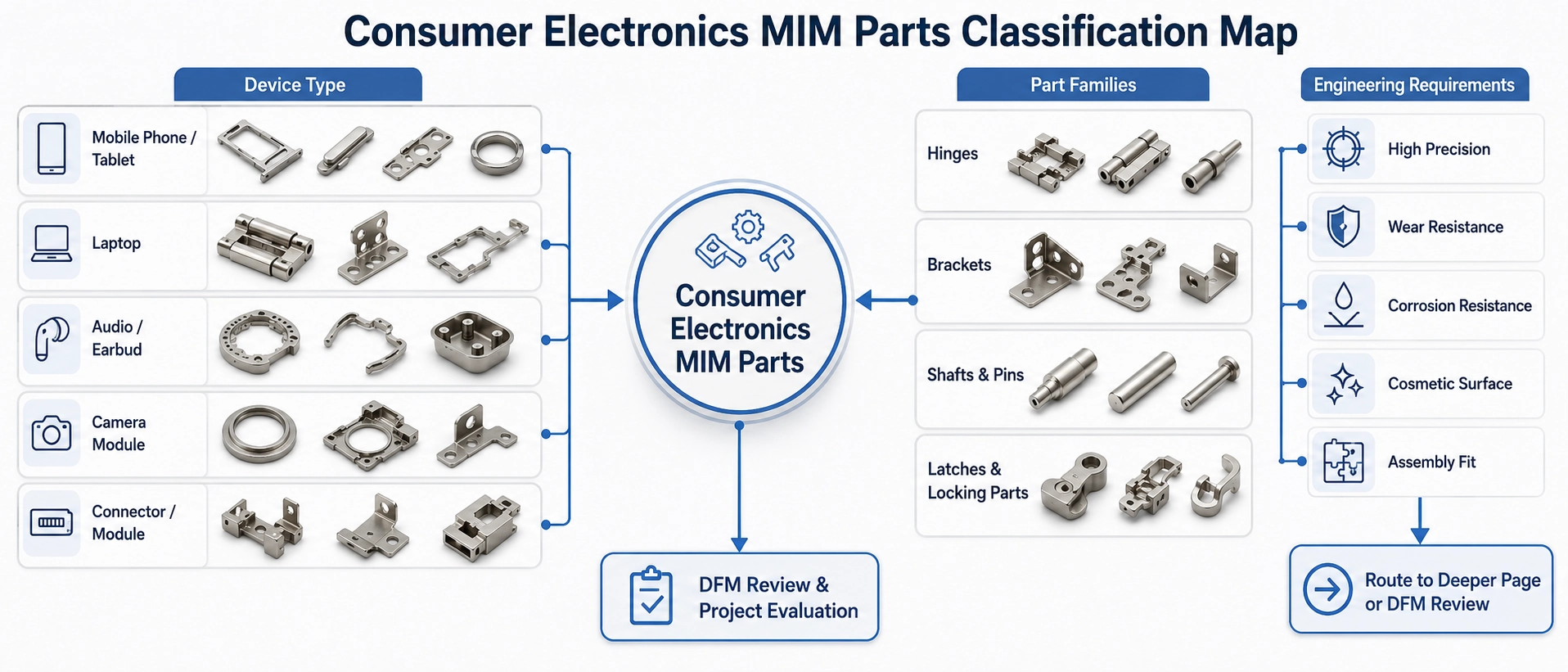

Consumer Electronics MIM Parts by Device Type
Device type is the first practical way to classify consumer electronics MIM parts. It helps engineers understand whether the design problem is mainly about appearance, compact structure, motion, support, or assembly fit.
Mobile Phone MIM Parts
Mobile phone and tablet projects are often good candidates for MIM when the part is small, metal, compact, and produced in repeat volume. Typical examples may include SIM trays, camera rings, side buttons, internal brackets, connector supports, and small mechanism parts for foldable or sliding device structures.
Phone projects often involve cosmetic surfaces, tight assembly fit, coating compatibility, and high-volume repeatability. These topics need a dedicated page because a smartphone camera ring, a SIM tray, and an internal support bracket do not carry the same design risk.
Laptop MIM Parts
Laptop MIM parts often involve compact mechanical structures rather than simple appearance parts. Examples may include hinge-related components, retainers, locking structures, internal brackets, small shafts or pins, and support parts used around mechanical or display assemblies.
The key issue is not only whether the part can be molded. Laptop parts may require repeat movement, wear resistance, dimensional stability, and controlled fit with mating components. If the main risk is hinge torque, pivot wear, or movement stability, the cross-industry hinge page should also be reviewed.
Audio and Earbud MIM Parts
Earbud and audio device parts may include miniature frames, charging case metal inserts, small supports, latches, decorative structural pieces, or compact internal metal components. MIM can be considered when these parts require metal strength, small features, attractive surface finishing, or repeat assembly performance.
The main engineering concern is usually the combination of thin geometry, appearance, and assembly fit. A dedicated page should only be created later if there is enough search demand, real engineering material, and clear part examples.
Camera Module and Optical Device Parts
Camera module and optical device parts may include camera rings, small housings, positioning frames, support brackets, and cosmetic metal rings. These parts often require stable geometry, clean visible surfaces, and controlled fit with surrounding components.
For now, camera module parts should stay as a section in this broader consumer electronics page or be covered within the Mobile Phone MIM Parts page. A separate camera module page should only be created when search data and project examples support it.
Connector and Module Hardware
Connector and module hardware in consumer electronics can include support pieces, retainers, locking parts, miniature brackets, and small structural inserts. MIM is most relevant when the part is a structural metal component rather than a stamped contact, spring, or electrical terminal.
The MIM opportunity usually sits around support, fixing, alignment, housing, or retention functions. If the part must conduct electricity, flex repeatedly, or act as a spring contact, the material and manufacturing route must be reviewed carefully.
Miniature Mechanisms
Miniature mechanisms may include latches, pivots, small locking parts, hinge segments, shafts, pins, and rotating elements. The correct next page depends on whether the core issue is movement, wear, support, assembly alignment, or dimensional stability.
Which MIM Part Families Are Common in Consumer Electronics?
Many consumer electronics parts can also be classified by part family. This is important because the same engineering problem may appear in phones, laptops, wearables, audio devices, and compact electronic modules. A hinge problem is not only a laptop problem. A bracket problem is not only a camera module problem. A shaft or pin problem may appear in several miniature mechanisms.
MIM Hinge Parts for Compact Device Mechanisms
MIM hinge parts may be used in compact mechanisms where the part requires small geometry, metal strength, repeated movement, and controlled fit with mating components. If the main design question is about hinge movement, pivot fit, torque, friction, wear, or mating geometry, use the cross-industry hinge page.
MIM Bracket Parts for Internal Support and Assembly
MIM bracket parts may support camera modules, connectors, compact assemblies, internal frames, or small mechanical structures. These parts often look simple, but their function can be critical if they control alignment, load path, assembly position, or repeatable mounting.
MIM Shafts and Pins for Miniature Mechanisms
Small shafts and pins can appear in hinges, locking parts, sliding mechanisms, rotating assemblies, and compact device structures. MIM may be considered when the part is not a simple cylindrical pin but includes flats, shoulders, grooves, heads, locking surfaces, or integrated functions.
When Is MIM a Strong Fit for Consumer Electronics Parts?
MIM is a strong fit when the part combines small size, complex geometry, metal performance, repeat volume, and design features that are difficult or costly to produce by simple machining or forming. In consumer electronics, this often means the part is both functional and compact.
| Strong Fit Signal | Why It Matters for Consumer Electronics |
|---|---|
| Small metal part | MIM is generally more suitable for compact components than large housings. |
| Complex three-dimensional geometry | Features can be formed in tooling instead of multiple CNC operations. |
| High repeat volume | Tooling investment can be spread across production quantity. |
| Cosmetic + functional requirement | Surface planning and dimensional repeatability both matter. |
| Assembly-critical features | Holes, slots, bosses, ribs, and mating surfaces can be reviewed during DFM. |
| Part consolidation potential | MIM may reduce separate machining, fastening, or assembly steps. |
| Material performance required | Stainless steel or alloy steel may support strength, corrosion, or wear requirements. |
In production, MIM should not be selected only because a part is small. It should be selected when the process offers a practical advantage after considering tooling, feedstock, injection molding, green part handling, debinding, sintering shrinkage, secondary operations, inspection, and final assembly requirements.
For a broader explanation of the route, review the Metal Injection Molding process.
Material and Function Mapping for Consumer Electronics MIM Parts
Material choice should be reviewed together with part function, finish route, tolerance plan, and use environment. This page should not replace a full material page, but an early mapping helps engineers avoid assigning the wrong MIM material family before tooling review.
| Function or Requirement | Common MIM Material Direction | What to Review Before Tooling |
|---|---|---|
| Cosmetic metal surfaces, moisture exposure, or corrosion concern | Stainless steel families are often reviewed first when corrosion resistance and appearance are important. | Visible zones, polishing allowance, passivation, PVD, plating compatibility, edge rounding, and dimensional change after finishing. |
| Internal support, locking, or load-bearing miniature structures | Stainless steel or low alloy steel may be reviewed depending on strength, heat treatment, corrosion, and finishing needs. | Load path, datum structure, mating faces, heat treatment distortion, secondary machining, and inspection dimensions. |
| Sliding, pivoting, or friction-contact mechanisms | Wear-resistant alloy choices or heat-treated material routes may be considered after reviewing mating parts and movement conditions. | Contact surface, lubrication assumptions, hardness target, shaft or pin fit, wear testing plan, and post-sintering operations. |
| Magnetic response, sensor area, or electrical-related assembly | Material selection must be reviewed carefully because not every metal part near an electronic module has the same magnetic or electrical requirement. | Magnetic behavior, conductivity requirement, contact function, nearby sensors, plating, and whether MIM is the correct route. |
| High-visibility decorative plus structural function | The material route should be selected together with the final surface finish instead of being chosen only by strength. | Gate position, parting line, ejector marks, finishing allowance, coating adhesion, cosmetic inspection zones, and assembly fit. |
For detailed material families and grade-level selection, continue to MIM Materials. For parts where tolerance is the main issue, the better follow-up may be High Precision MIM Parts.
When Should You Avoid MIM for Consumer Electronics Parts?
MIM is not the best manufacturing route for every consumer electronics metal part. A credible manufacturing review should identify when another route may be more practical.
| Part Situation | Why MIM May Not Be Ideal | Better Route May Be |
|---|---|---|
| Large simple housing | Tooling and sintering shrinkage may not be justified. | Die casting or CNC machining |
| Flat sheet-like part | Geometry is more suitable for forming from sheet metal. | Stamping |
| Very low-volume prototype | MIM tooling cost is difficult to justify. | CNC machining or additive manufacturing |
| Plastic-dominant structure | Metal strength is not the primary requirement. | Plastic injection molding |
| Ultra-tight local tolerance | As-sintered tolerance may not be enough. | MIM + secondary machining or CNC |
| Short lifecycle with uncertain volume | Tooling payback risk is high. | CNC or another lower-tooling route |
What Engineering Risks Should Be Reviewed Before Tooling?
Before a consumer electronics part is tooled for MIM, the engineering review should focus on the failure modes that affect appearance, assembly, function, and yield. These risks are often easier to correct before tooling than after trial production.
Visible Surface and Cosmetic Zone Planning
Consumer electronics parts often include visible surfaces, polished areas, plated areas, coated areas, or decorative metal features. If the visible zone is not defined early, the tooling and process team may place gates, parting lines, ejector marks, or finishing allowances in areas that later become cosmetic defects.
- Which surfaces are visible after final assembly?
- Can gate marks be placed in a non-visible area?
- Is polishing required before plating, PVD, passivation, or coating?
- Will finishing change edge sharpness or local dimensions?
Thin Wall, Small Feature, and Sintering Distortion Risk
MIM uses feedstock made from fine metal powder and binder, injected into tooling, then debound and sintered. Because sintering shrinkage must be compensated in tooling and process control, thin walls, uneven wall sections, long narrow features, and unsupported areas can increase distortion risk.
- Thin walls or long unsupported sections.
- Sudden section changes.
- Small holes, slots, ribs, bosses, and undercuts.
- Surfaces that may need sintering support.
Assembly Tolerance and Mating Part Fit
Consumer electronics parts are often assembled into compact spaces. A small dimensional shift can affect hinge movement, camera alignment, connector support, button feel, or enclosure fit. The tolerance strategy must separate critical-to-function dimensions from non-critical dimensions.
- Critical mating surfaces.
- Hole and slot functions.
- Datum references.
- Fit with pins, screws, shafts, plastic parts, or other metal parts.
Material and Surface Finish Compatibility
Material choice should be reviewed together with function, surface finish, and environment. Consumer electronics parts may require corrosion resistance, wear resistance, strength, cosmetic finishing, or magnetic behavior. Surface finish planning should happen before tooling.
Composite Field Scenarios for Engineering Training
These composite scenarios are used for engineering training. They do not represent a named customer case, order background, or confidential project.
Cosmetic Camera Ring Rework
What problem occurred: A small camera ring passed basic shape review but later showed visible surface inconsistency after polishing and coating, especially near a gate-related area that became visible after final assembly.
Why it happened: The visible surface zone had not been clearly defined before tooling review.
What the real system cause was: The project review focused too heavily on part shape and not enough on final assembled appearance, gate restriction, parting line expectation, and finishing allowance.
How it was corrected: The team reviewed visible and hidden zones, adjusted the tooling and finishing plan where possible, and defined cosmetic inspection areas separately from hidden functional surfaces.
How to prevent recurrence: Define cosmetic zones, gate restrictions, parting line expectations, polishing allowance, and final finish requirements before tooling approval.
Laptop Mechanism Fit Issue
What problem occurred: A compact laptop mechanism part assembled correctly during early samples but showed inconsistent movement after repeated assembly checks around a pivot-related feature.
Why it happened: The drawing controlled several general dimensions but did not clearly define which mating surfaces and pivot-related dimensions were critical to movement.
What the real system cause was: The tolerance strategy did not reflect the actual mechanism function, contact surface, wear area, and inspection priority.
How it was corrected: The team redefined datum references, identified pivot and mating surfaces, adjusted inspection focus, and reviewed whether selected areas required secondary operation.
How to prevent recurrence: Identify the movement path, contact surfaces, pin or shaft fit, wear areas, and functional inspection dimensions before tooling.
DFM Review Workflow for Consumer Electronics MIM Parts
A proper review should not only ask whether the part can be molded. It should check whether the part can be molded, debound, sintered, finished, inspected, and assembled with stable results.
How to Choose the Right XTMIM Page for Your Part
The fastest way to use this page is to classify your part by the real engineering problem. The part name is useful, but the function is more important.
| Your Part or Main Concern | Recommended Page |
|---|---|
| Smartphone, tablet, or foldable device parts | Mobile Phone MIM Parts |
| Laptop hinges, brackets, retainers, or compact mechanisms | Laptop MIM Parts |
| Hinge movement, torque, pivot wear, or rotating fit | MIM Hinge Parts |
| Internal support, mounting, or alignment structures | MIM Bracket Parts |
| Shaft, pin, pivot, or rotating connection | MIM Shafts & Pins |
| Tight assembly tolerance or dimensional stability | High Precision MIM Parts |
| Sliding, rotating, or friction-contact parts | Wear-Resistant MIM Parts |
| Sweat, moisture, or corrosion exposure | Corrosion-Resistant MIM Parts |
| Wearable device parts | Wearable Device MIM Parts |
| Not sure which page matches your part | Contact XTMIM for an engineering feasibility review |
This structure prevents the broad consumer electronics page from becoming too deep. The broad page should help users find the right technical path. The deep pages should handle device-specific, part-family-specific, or performance-specific engineering questions.
What Information Should You Prepare for a Consumer Electronics MIM Parts Review?
If you already have a part drawing, the most useful next step is a project-level review. A good review is not only about whether the shape can be molded. It should evaluate material suitability, tooling risk, shrinkage behavior, cosmetic requirements, tolerance strategy, secondary operations, and inspection expectations. You do not need every detail to start the first screening; a 2D drawing, 3D CAD file, material direction, and estimated annual volume are usually enough for an initial feasibility review.
Send Your Consumer Electronics Part Drawing for MIM Review
Contact XTMIM if your project involves a small metal component with complex geometry, cosmetic surfaces, tight assembly fit, repeated movement, wear exposure, corrosion requirements, or unclear manufacturability before tooling. Please provide 2D drawings, 3D CAD files, material requirements, tolerance requirements, surface finish needs, mating part information, estimated annual volume, prototype timeline, and application background if available.
The XTMIM engineering team can review process suitability, material selection, tooling risk, sintering shrinkage, tolerance strategy, cosmetic surface planning, secondary operation needs, inspection requirements, and production feasibility before tooling, trial production, or volume production planning.
FAQ About Consumer Electronics MIM Parts
What consumer electronics parts are suitable for MIM?
MIM is most suitable for small, complex metal parts that require fine features, repeat production, metal strength, and controlled assembly fit. In consumer electronics, examples may include camera rings, SIM trays, small brackets, hinge-related parts, retainers, compact supports, latches, and miniature mechanism components.
Is MIM suitable for mobile phone parts?
Yes, MIM can be suitable for selected mobile phone and tablet parts such as SIM trays, camera rings, side buttons, small internal brackets, connector supports, and compact mechanism parts. Phone-related MIM parts often require careful review of visible surfaces, coating route, assembly fit, and high-volume repeatability.
Can MIM be used for laptop hinge parts?
MIM can be used for some laptop hinge-related components, retainers, pivots, locking structures, and compact mechanical parts. The main review points are torque, wear, mating dimensions, material choice, and whether any areas require secondary operation.
Are MIM parts suitable for connector terminals or electrical contacts?
Not usually as the first choice. MIM is more suitable for structural connector hardware such as retainers, housings, supports, miniature brackets, or locking features. Flat terminals, spring contacts, and conductive elastic parts often need stamping, forming, material temper control, and plating review instead of MIM.
Is MIM suitable for visible cosmetic parts?
MIM can be used for visible cosmetic metal parts, but the visible surface zone must be reviewed before tooling. Gate location, parting line, ejector marks, polishing allowance, plating, PVD coating, passivation, and inspection criteria can affect final appearance.
When is CNC better than MIM for consumer electronics parts?
CNC machining may be better for very low-volume prototypes, early design validation, large simple parts, or parts with extremely tight local tolerances that are not suitable for as-sintered MIM. CNC may also be more practical when the product design is still changing and MIM tooling cannot yet be justified.
What information should I send for a consumer electronics MIM part review?
Send 2D drawings, 3D CAD files, material requirements, critical tolerances, visible surface zones, finish requirements, mating part information, estimated annual volume, application environment, and current manufacturing method if available.
Should earbud, camera module, or connector hardware parts become separate pages?
Not always. These topics can stay inside the Consumer Electronics MIM Parts page unless there is clear search demand, enough engineering depth, and enough real part examples to support a dedicated page. Mobile Phone Parts and Laptop Parts are stronger first-stage L3 pages because their search intent and engineering differences are clearer.
